Standard Requirements for Multimode Fiber Optic Connectors

Multimode fiber optic connectors are specified by core diameter, modal bandwidth, attenuation, wavelength compatibility, and compliance with international standards such as ISO/IEC 11801 and TIA-492.

Core Diameter and Fiber Types

Multimode fibers (MMF) typically have core diameters of 50 µm or 62. 5 µm with a cladding diameter of 125 µm. The main standardized types are OM1, OM2, OM3, OM4, and OM5.

OM1 has a 62. 5 µm core, while OM2–OM5 have 50 µm cores. OM3 and OM4 are laser-optimized for 850 nm VCSEL sources, supporting higher data rates and longer distances, while OM5 extends support to 850–950 nm for wavelength division multiplexing.

Modal Bandwidth and Transmission Speed

The modal bandwidth defines the fiber's ability to transmit multiple light modes without significant dispersion. Typical specifications include: OM1: 200 MHz·km at 850 nm, suitable for 1 Gb/s up to 300 m. OM2: 500 MHz·km at 850 nm, suitable for 1–10 Gb/s up to 600 m.

OM3: 2000 MHz·km at 850 nm, supporting 10–40 Gb/s up to 300 m. OM4: 4700 MHz·km at 850 nm, supporting 10–100 Gb/s up to 550 m. OM5: Similar to OM4 but optimized for shortwave WDM applications.

Attenuation and Wavelength Compatibility

Multimode fibers are designed for 850 nm and 1300 nm wavelengths, with OM5 extending to 950 nm. Typical attenuation values are: 3. 5 dB/km at 850 nm1.

5 dB/km at 1300 nm Bend-insensitive fibers reduce macro-bending losses, improving performance in tight installations. Differential Mode Delay (DMD) and Effective Modal Bandwidth (EMB)High-speed MMF connectors must account for differential mode delay, which affects signal integrity. Laser-optimized fibers like OM3/OM4 are characterized by EMB and DMD metrics, ensuring reliable 40/100 GbE transmission.

Standards Compliance

Multimode fibers and connectors comply with: ISO/IEC 11801 for structured cablingTIA-492AAAB/AAAC/AAAD for OM2–OM4 fibersIEC 60793-2-10 for international fiber specifications These standards define core/cladding dimensions, modal bandwidth, attenuation, and connector performance.

Connector Types

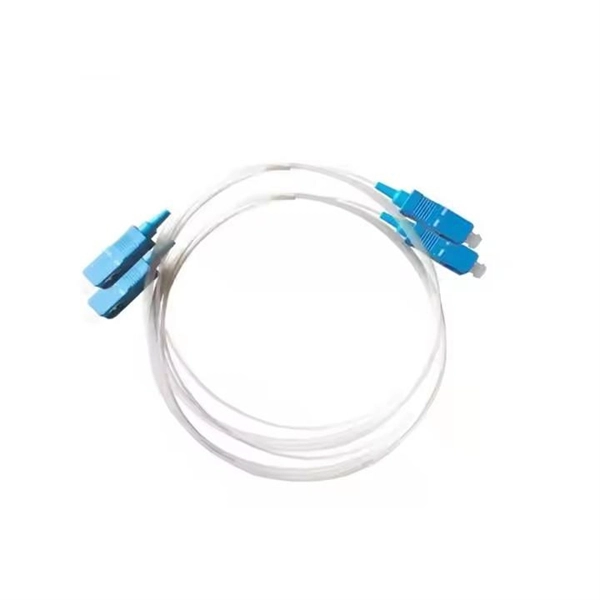

Common multimode fiber connectors include LC, SC, ST, and MTP/MPO. They are designed to maintain low insertion loss and high return loss, compatible with the fiber type and wavelength used.

Summary

When specifying multimode fiber connectors, key parameters include: Core/cladding diameter (50/62. 5 µm core, 125 µm cladding)Modal bandwidth and EMBAttenuation at 850/1300 nmDifferential mode delayStandards compliance (ISO/IEC, TIA, IEC)Connector type (LC, SC, ST, MTP/MPO)Bend-insensitivity for modern installations These specifications ensure high-speed, reliable data transmission in LANs, data centers, and enterprise networks.
