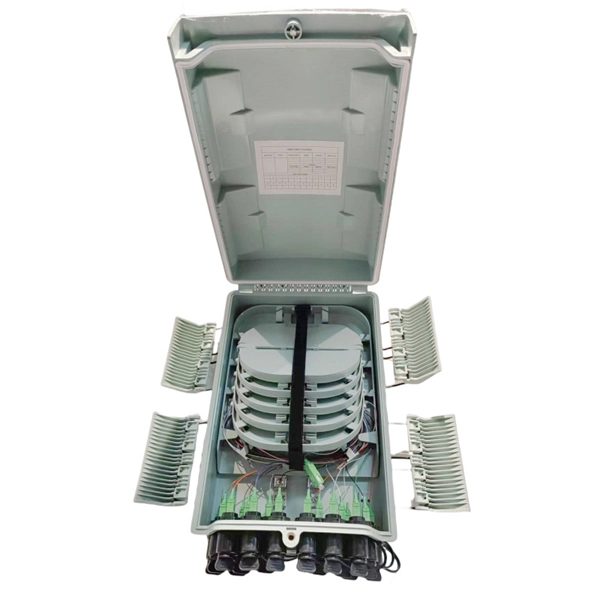

Can a beam splitter be installed indoors

Optical access and telecom site reference Published 10 May 2024

Use this reference to prepare product questions for CGWEB NETWORKS. Check interfaces, capacity, protection and installation requirements against the current product documentation.

Proper indoor installation of a beam splitter requires careful handling, correct orientation, and controlled environmental conditions to ensure optimal optical performance.

Types of Beam Splitters and Placement

Beam splitters can be plate or cube types, each with specific installation considerations. Plate beam splitters are thin glass plates, usually placed at a 45° angle of incidence (AOI), and may require a compensation plate to match optical path lengths and reduce ghost reflections. Cube beam splitters are more mechanically robust, constructed from two right-angle prisms cemented together, and are generally easier to align in a fixed optical setup.

For indoor setups, beam splitters are typically mounted on optical tables or breadboards using precision holders or mounts. Ensure the coated surface faces the incoming light for cubes, as indicated by reference marks, to avoid damaging the cement and maintain correct splitting ratios.

Environmental Considerations

Beam splitters are sensitive to humidity, dust, and temperature fluctuations. For indoor installation: Maintain humidity below 60% to prevent moisture damage, especially for sensitive interferometer units. Avoid touching the optical surfaces; use clean gloves or a beam splitter handle when handling.

Store unused beam splitters in a desiccator with silica gel to prevent moisture absorption. Ensure the installation area is free from dust and vibrations to maintain beam alignment and optical quality.

Safety Precautions

When installing beam splitters in systems with lasers, always: Turn off the main power before installation to prevent accidental exposure. Be aware of laser class; for Class 2M lasers, avoid direct eye exposure during installation. Use appropriate laser safety eyewear if the system cannot be fully powered down.

Alignment and Integration

Align the beam splitter so that the reflected and transmitted beams follow the intended optical paths. For plate beam splitters, consider anti-reflective coatings or wedged back surfaces to minimize ghost reflections. In high-sensitivity setups, a compensation plate may be required to equalize optical path lengths between transmitted and reflected beams.

Verify the splitting ratio and polarization characteristics if using polarizing or non-polarizing beam splitters to ensure system performance. By following these guidelines, indoor beam splitter installation can be performed safely and effectively, ensuring reliable optical performance and longevity of the component.
