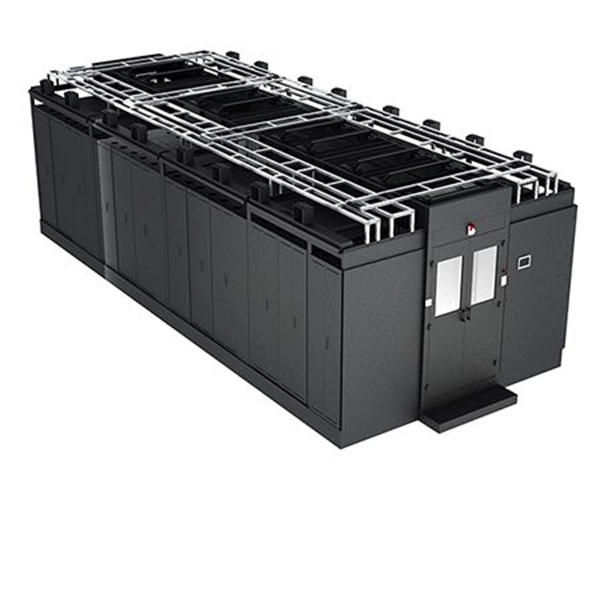

Cable Tray Usage Plan for Computer Room

Effective cable tray management in computer rooms ensures organized cabling, optimal airflow, and scalable infrastructure for future growth.

Selecting the Right Cable Tray

Choose a tray type based on cable type, load, and airflow needs: Wire mesh trays: Ideal for data cabling, offering excellent ventilation and flexibility for frequent changes. Ladder trays: Suitable for heavy power cables, providing strength and separation from data lines. Perforated trays: Offer moderate protection and ventilation, usable in controlled environments.

Solid trays: Fully enclosed, providing maximum protection but can obstruct airflow; generally not recommended for server rooms.

Layout and Installation

Plan for layers: Use multiple levels for main cables, branches, and connections to equipment to prevent crossing and tangling. Maintain fill rates: Keep tray fill below 30–40% to avoid overloading and allow airflow. Support load safely: Aluminum trays should hold at least 150 kg/m, and galvanized steel trays 300 kg/m, considering seismic factors.

Airflow integration: Align trays with hot aisle/cold aisle configurations; perforated or holed trays help maintain cooling efficiency. Expansion pathways: Reserve space for future cable additions to avoid rework.

Organization and Labeling

Separate cable types: Keep power and data cables physically separated to reduce interference. Label clearly: Use durable labels on both ends of each cable for quick identification and troubleshooting. Document infrastructure: Maintain diagrams and spreadsheets mapping all connections and tray routes.

Use cable ties or Velcro straps: Nylon ties for permanent setups, Velcro for flexible, frequently changed environments.

Maintenance and Safety

Regular audits: Check tray fill, cable condition, and airflow paths periodically. Trim excess cable: Avoid coils that obstruct airflow or create hazards. Energy efficiency: Properly routed cables improve cooling efficiency, reducing HVAC load.

Compliance: Follow standards like TIA-942-C and local electrical codes to ensure safety and insurance compliance.

Advanced Considerations

Special coatings: Nano coatings reduce friction for easier cable pulling, and conductive anodizing minimizes electrical interference. Active cooling: Some trays include fans that activate based on temperature sensors to maintain optimal cable temperatures. By implementing these practices, computer rooms can achieve organized, safe, and scalable cable management, reducing downtime, simplifying maintenance, and supporting future technology upgrades.
