Comparison of upgraded fiber optic patch panels with more reliable performance

Upgraded fiber optic patch panels offer higher port density, modular scalability, low insertion loss, and enhanced cable management for reliable, high-speed network performance. Key Features of Upgraded Fiber Optic Patch Panels1. Port Density and Scalability Modern panels support ultra-high density configurations, accommodating 144+ fibers per 1U or using MPO/MTP connectors for 12, 24, or 48 fibers per connector.

Cassette-based designs allow seamless migration from 10G to 400G or 800G networks without replacing the entire panel, providing future-proof scalability. High-density panels save rack space but require careful planning for technician access to avoid accidental disconnections. 2.

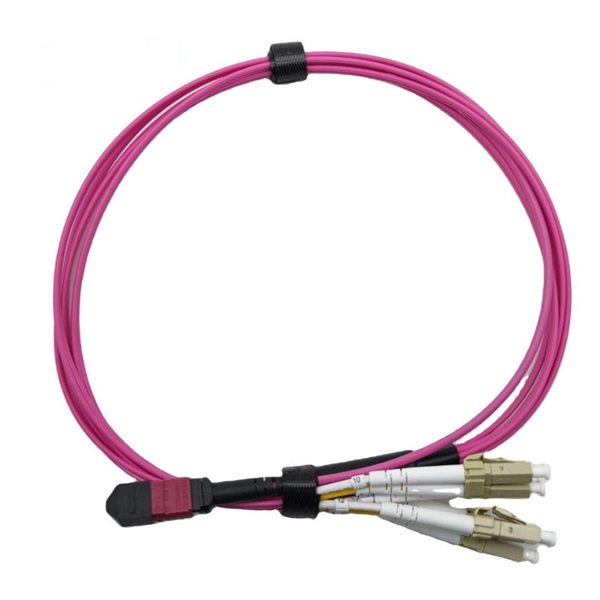

Connector Types and Compatibility Panels support LC, SC, and MPO/MTP connectors, enabling compatibility with single-mode (OS2) and multi-mode (OM4) fibers.

Base-8 and Base-16 MT

P configurations improve internal architecture, reducing field-termination errors and accelerating deployment. Selecting panels that comply with TIA-568. 3-E and ISO/IEC 11801 standards ensures interoperability and consistent optical performance.

3. Insertion Loss and Signal Integrity High-quality panels use ultra-low loss (ULL) cassettes with insertion loss ≤0. 35 dB, critical for high-speed links.

Return loss specifications (>50 dB for single-mode fibers) maintain signal integrity, minimizing degradation in 400G/800G networks. 4. Cable Management and Protection Upgraded panels feature robust front and rear cable management, strain relief, and bend-radius protection to prevent micro-bending losses.

Ribbon cables and parallel optical connections enhance data transmission capacity while keeping fibers organized. Slide-out or fixed trays influence technician workflow during maintenance and troubleshooting. 5.

Material and Thermal Stability Panels are typically constructed from cold-rolled steel or high-impact polycarbonate, resistant to warping under thermal loads from high-power equipment. This ensures long-term reliability over 10–15 years of operation. 6.

Ease of Installation and Maintenance Tool-less access, pre-terminated modular cassettes, and plug-and-play designs reduce installation time and errors. Proper labeling, cleaning, and structured cable routing further enhance operational efficiency and minimize downtime.

Leading Panel Solutions

Cisco: Robust, reliable panels for mission-critical environments with flexible rack sizes. Eaton: Pre-configured, plug-and-play panels supporting spine-leaf network designs.

Comm

Scope and Leviton: Ultra-high density solutions for large-scale data centers requiring future-proof scalability.

Conclusion

Upgraded fiber optic patch panels combine high-density connectivity, modular scalability, low insertion loss, and advanced cable management to deliver reliable performance in modern networks. When selecting a panel, consider port density, connector type, insertion loss, material quality, and ease of maintenance to ensure long-term operational efficiency and compatibility with evolving high-speed network requirements.
