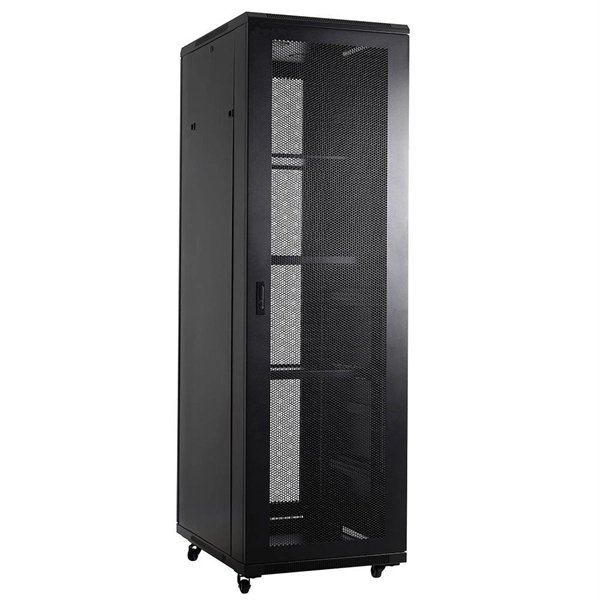

How to build a network cabinet patch panel

Building a network cabinet patch panel involves careful planning, proper cable termination, and organized installation to ensure a scalable and maintainable network. Step 1: Plan Your Network LayoutBefore installing any hardware, strategically plan the cabinet layout. Determine the number of devices, port density, and cable types required.

Place the patch panel at the top of the cabinet as it serves as a passive connection point, with switches directly below for short, organized patch cable runs. Active devices like servers or storage should be positioned in the lower third for accessibility and weight distribution. Group devices logically by function, department, or type of use, and consider color-coded patch cables for easy identification ( ).

Step 2: Select the Right Patch Panel and CablesChoose a patch panel that matches your cable category (e.g., Cat6a for 10 Gbps networks). Decide between modular keystone panels for flexibility or fixed-port panels for uniform installations. For environments with high electromagnetic interference, use shielded (STP) panels; otherwise, unshielded (UTP) is sufficient ( ).

Step 3: Prepare and Terminate CablesStrip the outer jacket of each network cable using a wire stripper. Arrange the wires according to the T568A or T568B wiring standard indicated on the patch panel or keystone jack ( ). Insert the wires into the jack module's wire clamps and press firmly using a punch-down tool or tool-free clips.

Trim any excess cable and insert the keystone jack into the patch panel. Repeat for all cables ( ). Step 4: Mount the Patch PanelSecure the patch panel to the network cabinet using cabinet screws, ensuring it is level and accessible.

Maintain proper spacing for airflow and future expansion ( ). Step 5: Connect to SwitchesUse short, organized patch cables to connect each port on the patch panel to the corresponding port on the network switch. Keep cables neat and avoid tight bends to maintain signal integrity ( ).

Step 6: Label and DocumentLabel each cable at both ends with port numbers, device names, or location identifiers. Maintain a structured documentation system for ports, IPs, VLANs, and devices to simplify troubleshooting and future modifications ( ). Step 7: Test and VerifyAfter installation, test each connection for continuity and performance.

Ensure all ports are functional and that the network meets the required speed and reliability standards ( ). By following these steps, you create a well-organized, scalable, and maintainable network cabinet that simplifies troubleshooting, supports future expansion, and maintains signal integrity.
