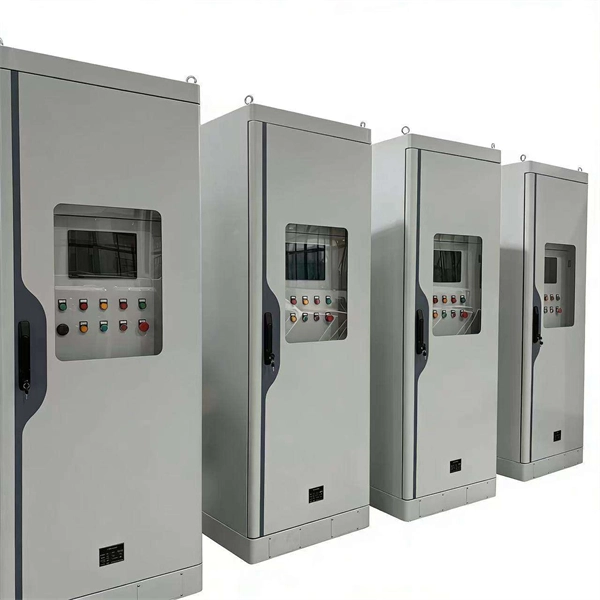

Relevant to Relay Protection Design

Relay protection design ensures rapid, selective, and coordinated fault isolation to maintain system stability, protect equipment, and minimize outages.

Core Principles of Relay Protection

Relay protection is a discipline focused on detecting abnormal conditions in power systems and initiating corrective actions automatically to prevent equipment damage and maintain system stability. Key principles include: Dependability: Relays must operate correctly for all faults they are designed to detect. Security: Relays must avoid operating incorrectly for non-fault conditions.

Speed: Faults must be cleared quickly, often within milliseconds, to prevent cascading failures. Selectivity: Only the faulted section should be isolated, leaving the rest of the system operational.

Protection Philosophy

Design begins with defining protection objectives, such as prioritizing equipment, continuity, personnel safety, and system stability. The philosophy guides: Fault tolerance: Determining acceptable fault energy and response times. Coordination: Aligning relays and circuit breakers to ensure primary devices act first, with backups ready if needed.

System integration: Protection schemes must be coordinated with overall system design and operation.

Types of Protection Schemes

Relay protection schemes vary depending on the equipment and system topology: Differential protection: For transformers, generators, and buses, detecting internal faults by comparing currents at multiple points. Distance and directional relays: For transmission lines, using impedance and direction to isolate faults. Overcurrent and inverse-time relays: Common for distribution feeders, providing graded response based on fault magnitude.

Unit and non-unit protection: Unit protection isolates a specific zone, while non-unit protection may cover broader areas.

Modern Relay Technologies

Advances in microprocessor-based and numerical relays allow multifunctional protection, improved accuracy, and communication with control systems. Features include: Integration with SCADA and digital monitoring. Programmable logic for complex coordination.

Enhanced fault recording and diagnostics.

Testing and Commissioning

Proper relay design includes testing and commissioning procedures to ensure reliability: Verification of relay settings and coordination. Functional testing of trip, close, indication, and alarm circuits. Ensuring station batteries and auxiliary circuits can supply energy during faults.

Summary

Effective relay protection design is not just about installing relays, but about engineering a coordinated system that responds correctly under fault conditions. It combines protection philosophy, scheme selection, device technology, and rigorous testing to safeguard equipment, maintain continuity, and ensure system stability.
