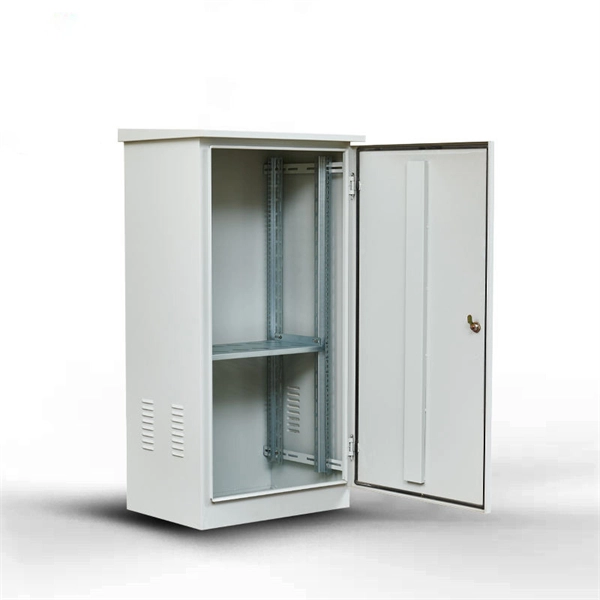

How to install the external electrical distribution box

Install an external electrical distribution box by selecting a suitable location, securing the enclosure, connecting wires correctly, and performing safety tests to ensure compliance and reliability. Step 1: Choose the Right Box and LocationSelect a distribution box suitable for outdoor use with proper IP or NEMA ratings (e.g., IP66 or NEMA 4) to protect against water, dust, and environmental damage. Choose a dry, accessible location with good ventilation, away from flammable, corrosive, or explosive materials.

The recommended height for residential installations is around 1. 5 meters above ground. Ensure enough space around the box for maintenance and heat dissipation.

Step 2: Prepare the Installation SurfaceFor surface-mounted boxes, fix the box directly onto the wall using expansion bolts or screws. For flush-mounted boxes, recess the box into the wall with appropriate mounting blocks or siding flanges. Make sure the box is level, stable, and secure, without tilting or looseness.

Step 3: Wire PreparationCut the insulation of each wire to expose the conductor, leaving a moderate length for connection. Follow color coding standards: phase wire to phase terminal, neutral to neutral, and ground to ground. Use a wire stripper or screw terminals to ensure tight, conductive connections.

Step 4: Install Circuit ProtectionInstall circuit breakers, fuses, or surge protectors according to your power requirements. Each circuit should have its own protection device to prevent overloads or short circuits. Step 5: Connect Input and Output WiresConnect the main power input to the distribution box and route branch circuits to their respective terminals.

Arrange wires neatly inside the enclosure, securing them with cable ties and leaving space for heat dissipation. Step 6: Label and OrganizeLabel each circuit clearly for easy identification during maintenance or troubleshooting. Consider modular designs for future upgrades.

Step 7: Safety Checks and TestingBefore powering on, perform a visual inspection and use a multimeter or insulation resistance tester to verify proper connections and insulation resistance. Conduct an on/off test for each circuit to ensure there are no short circuits or broken wires. Step 8: Additional Outdoor ProtectionIf the box is exposed to rain or sunlight, add a rain cover or other protective measures.

Ensure the enclosure material (plastic or metal) is suitable for the environment: plastic for corrosion resistance and light weight, metal for impact protection. Following these steps ensures a safe, compliant, and durable installation of an external electrical distribution box, minimizing risks of electrical hazards and facilitating future maintenance.
