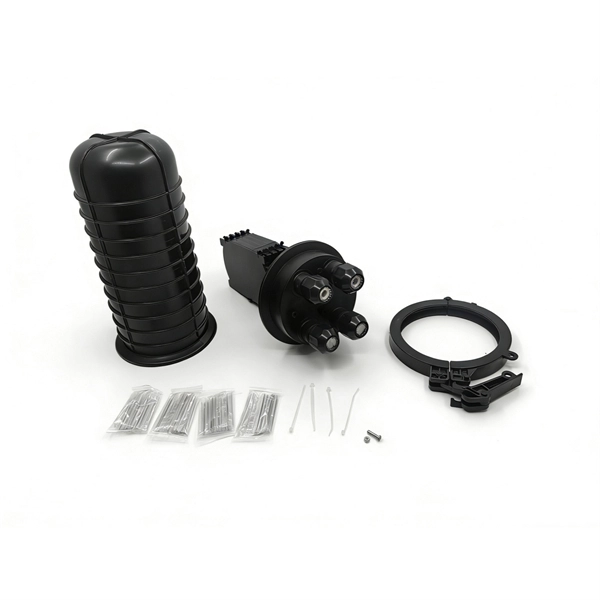

Fiber Optic Couplers and Fiber Optic Distribution Frames

A Fiber Optic Distribution Frame (FDF/ODF) organizes, terminates, and manages optical fibers, while a Fiber Optic Coupler passively splits or combines optical signals between fibers. Fiber Optic Distribution Frame (FDF/ODF)A Fiber Optic Distribution Frame (FDF), also known as an Optical Distribution Frame (ODF), is a centralized platform used to terminate, splice, patch, and manage optical fibers in structured cabling systems. It serves as the backbone of optical networks in data centers, telecom rooms, and enterprise environments.

Key functions include: Splicing Management: Houses splice trays to protect fiber splices, maintain proper bend radius, and store excess fiber slack. Fiber Termination: Provides adapter panels (LC, SC, MPO/MTP) for connecting active equipment via patch cords. Cable Routing and Slack Management: Organizes fiber routing, prevents stress on cables, and ensures easy maintenance.

Protection & Reliability: Shields fibers from mechanical stress, dust, and accidental damage, enhancing long-term network stability.

OD

Fs come in wall-mounted, rack-mounted, and modular designs, allowing scalability and flexibility. Wall-mounted units are compact for small setups, while rack-mounted frames support high-density deployments and modular expansion. They are essential for managing fiber connections between backbone and horizontal cabling, ensuring organized and secure optical paths.

Fiber Optic Coupler

A Fiber Optic Coupler is a passive optical device that splits or combines optical signals between fibers without converting them to electrical signals. Its main purposes include: Signal Splitting: Divides a single optical signal into multiple outputs for distribution in networks like FTTH (Fiber to the Home). Signal Combining: Merges multiple optical signals into a single fiber for transmission.

Wavelength Management: In some cases, couplers can combine signals of different wavelengths for WDM (Wavelength Division Multiplexing) applications. Couplers are typically installed within or alongside distribution frames, allowing flexible routing and testing of optical paths. They do not actively process data but facilitate the physical distribution of optical signals.

Key DifferencesFeatureFiber Optic Distribution Frame (FDF/ODF)Fiber Optic CouplerFunctionOrganizes, terminates, splices, and manages fibersPassively splits or combines optical signalsRole in NetworkCentral hub for fiber management and protectionSignal distribution or combinationInstallationWall-mounted, rack-mounted, modularIntegrated into ODFs or inline in fiber linksActive/PassivePassive structural devicePassive optical deviceMaintenanceProvides access for patching, testing, and expansionMinimal maintenance; mainly for signal routingIn summary, ODFs/FDFs provide the structured environment for fiber management, while fiber optic couplers handle the distribution of optical signals within that environment.

Both are critical for efficient, scalable, and reliable optical networks.
