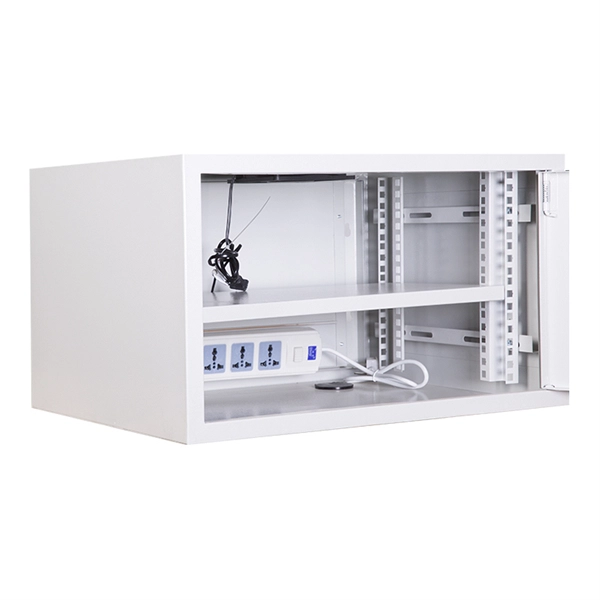

Double-layer protection for distribution boxes

Double-layer distribution boxes use an inner and outer door structure to provide enhanced safety, environmental protection, and compliance with international standards such as IEC60529 and IEC62262.

Overview of Double-

Layer ProtectionDouble-layer or dual-door distribution boxes feature an outer protective door and an inner operational door, creating a layered barrier between the environment and sensitive electrical components. This design improves safety for personnel, prevents accidental contact with live parts, and enhances resistance to dust, water, and mechanical impact. These enclosures are widely used in industrial, commercial, and photovoltaic applications.

Standards and RatingsIP (Ingress Protection) Ratings: The IP code (IEC60529) defines protection against solids and liquids. For example, IP65-rated dual-layer boxes are dust-tight and protected against water jets. Testing involves exposure to dust chambers and water jets to ensure no ingress, simulating harsh real-world conditions.

I

K (Impact Protection) Ratings: IEC62262 specifies mechanical impact resistance, ensuring the enclosure can withstand physical shocks without compromising internal components. Fire and Thermal Safety: IEC60695-2-10 addresses flammability and heat resistance, ensuring the enclosure material does not propagate fire and can tolerate operational temperatures. Material and Construction: Common materials include PC engineering plastics or cold-rolled steel with powder coating, providing corrosion resistance and mechanical strength.

Modular internal layouts with DIN rail mounting allow safe and organized installation of electrical components.

Benefits of Double-

Layer Design

Enhanced Safety: Inner door prevents accidental contact with live parts during maintenance. Environmental Protection: Outer door shields against dust, water, and chemical exposure. Maintenance Efficiency: Modular design allows easy access to components without compromising protection.

Compliance: Meets international standards (IEC60529, IEC62262, IEC60695-2-10), ensuring reliability in industrial environments. ApplicationsDouble-layer distribution boxes are suitable for: Industrial power management systemsCommercial electrical installationsPhotovoltaic and renewable energy systemsHarsh environments requiring high IP and IK ratings By combining layered protection, standardized mounting, and robust materials, these enclosures provide a system-level safety interface that protects both personnel and equipment while ensuring compliance with international standards.
