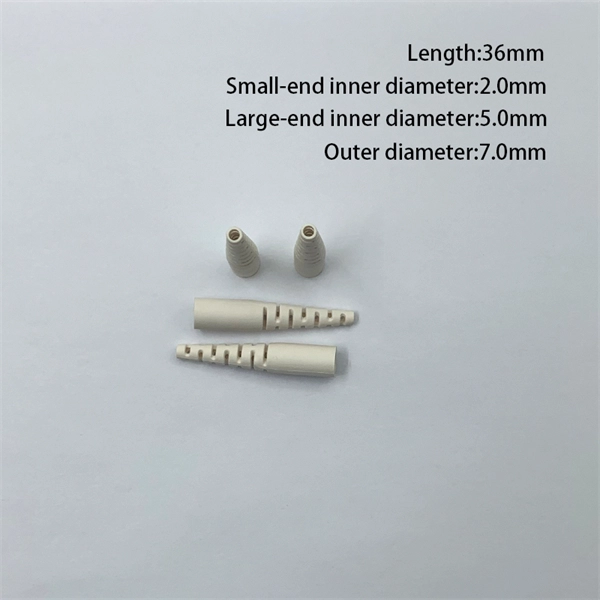

Connecting the pigtail to the fiber optic transceiver

To connect a fiber optic pigtail to a transceiver, you fuse the bare end of the pigtail to the incoming fiber and plug the pre-terminated connector into the transceiver port. Step 1: Prepare the Fiber and PigtailBegin by carefully stripping the outer coating of both the incoming fiber and the pigtail to expose the glass core. Clean the exposed fibers with isopropyl alcohol wipes to remove dust and debris, as even tiny particles can cause signal loss or back reflection.

Use a fiber cleaver to make a precise, clean cut on both fibers for optimal splicing. Step 2: Fusion SplicingPlace the prepared fibers into a fusion splicer, aligning the cores precisely. The splicer will fuse the fibers together, creating a permanent, low-loss joint.

After splicing, apply a heat-shrink sleeve over the splice to protect it from mechanical stress and environmental factors. Ensure the splice is smooth and free of bubbles or misalignment. Step 3: Connect the Pigtail to the TransceiverThe pigtail comes with a factory-terminated connector on one end.

Simply plug this connector into the corresponding port on the fiber optic transceiver. Ensure the connector type (LC, SC, MPO, etc.) and polish type (UPC, APC) match the transceiver specifications to avoid signal degradation. Step 4: Testing and VerificationAfter connecting, use an OTDR (Optical Time-Domain Reflectometer) or a power meter to verify the connection quality and ensure minimal signal loss.

Proper testing confirms that the fusion splice and transceiver connection are functioning correctly.

Tools and Materials Needed

Fiber optic pigtail with pre-terminated connectorFusion splicerFiber cleaverStripping toolIsopropyl alcohol wipesHeat-shrink sleevesOTDR or power meter for testing By following these steps, you ensure a reliable, low-loss connection between your fiber optic cable and the transceiver, suitable for data centers, telecom networks, or FTTH deployments.
