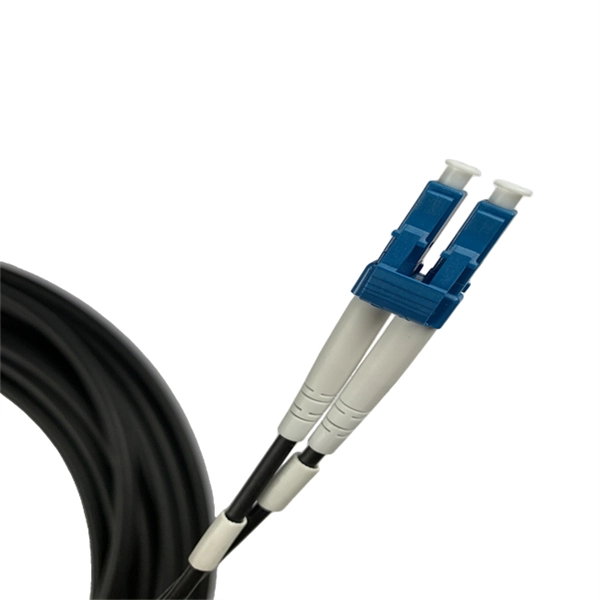

Outdoor fiber optic cable telecommunications

Connecting outdoor fiber optic cables requires careful planning, proper cable selection, secure installation, precise splicing, and thorough testing to ensure reliable telecommunications. 1.

Choose the Right Outdoor Fiber Optic Cable

Outdoor fiber optic cables are designed to withstand harsh conditions such as moisture, UV exposure, temperature fluctuations, and mechanical stress. Key types include: Direct-buried armored cables: Reinforced for underground installation without conduit. Aerial cables: Suspended on poles or messenger wires, designed to handle wind and ice.

Submarine cables: Multi-layer armored for water crossings. Specialty cables: Anti-ant or insect-resistant for specific environments. 2.

Plan the Installation Route

Survey the site: Identify obstacles, existing utilities, and pole locations. Determine installation method: Choose between direct burial, conduit, aerial, or underwater based on terrain and network needs. Obtain permits: Ensure compliance with local regulations and safety standards.

3.

Prepare the Environment

Trenching for underground cables: Excavate at least 60 cm deep (deeper in frozen soil), lay a 10 cm sand cushion, and remove sharp stones. Pole preparation for aerial cables: Install brackets, clamps, and suspension fittings, leaving a small sag (e.g., 0. 5%) to accommodate wind and thermal expansion.

4.

Cable Handling and Pulling

Use a pulling rope and lubricant: Reduces friction and prevents damage. Monitor tension: Use a tension controller to avoid exceeding the cable's rated tensile strength. Pulling speed: Keep ≤15 m/min; use swivel connectors and guiding pulleys at corners.

5.

Splicing and Termination

Fusion splicing: Provides low signal loss; clean fibers with alcohol wipes and lint-free paper. Splice protection: Use heat-shrink sleeves and place splices inside a splice closure. Environmental control: Perform splicing in humidity below 70% to ensure quality.

6. Testing and VerificationOTDR testing: Check for signal loss, faults, and continuity. Inspect connections: Ensure proper alignment and protection of fibers.

Document results: Maintain records for future maintenance and troubleshooting. 7.

Maintenance and Monitoring

Regular inspections: Check for weather, soil, or wildlife damage. Preventive measures: Replace damaged sections promptly and monitor network performance to maintain long-term reliability. By following these steps—selecting the appropriate cable, planning the route, careful installation, precise splicing, and thorough testing—you can establish a robust and durable outdoor fiber optic link for telecommunications networks.
