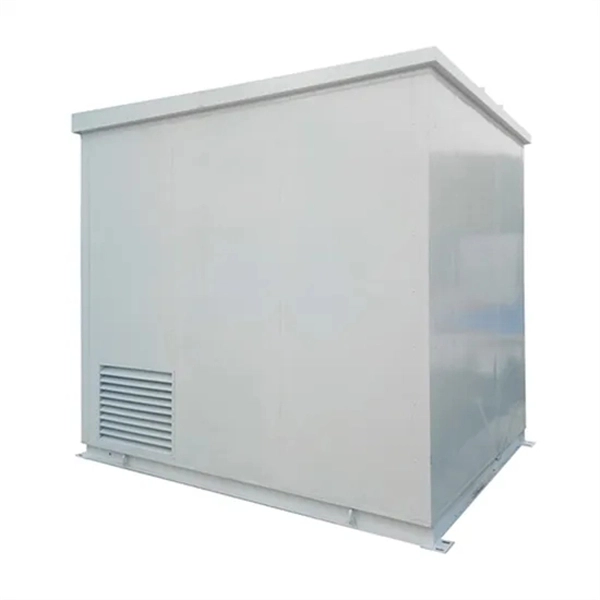

Installation Principles of Network Cabinets

Proper installation of network cabinets ensures organized, efficient, and scalable network infrastructure while maintaining equipment safety and performance.

Planning and Space Assessment

Before installation, assess your network's current and future requirements, including the number of devices, data speeds, and projected growth over 3–5 years ( ). Choose the appropriate cabinet type: floor-standing cabinets for larger setups with more equipment and adjustable racks, or wall-mounted cabinets for limited spaces ( ). Ensure sufficient clearance around the cabinet for maintenance, airflow, and future expansion, and position it near reliable power sources ( ).

Environmental and Safety Considerations

Select a location that minimizes exposure to dust, moisture, and temperature extremes. Proper air circulation is critical to prevent overheating, and installing fans or ventilation units may be necessary ( ). Implement grounding and surge protection to safeguard equipment and comply with electrical safety standards ( ).

Power Distribution

Identify power requirements and select the right Power Distribution Unit (PDU). Mount and connect PDUs safely, ensuring separation of power and data cables to reduce electromagnetic interference (EMI) ( ).

Cable Management

Organized cabling is essential for performance, safety, and scalability. Use horizontal and vertical cable managers, ladder racks, or cable trays to route cables neatly ( ). Maintain separation between copper, fiber optic, and power cables to prevent interference and damage, ideally keeping at least six inches between power and data bundles ( ).

Label cables and equipment for easy identification and future maintenance ( ).

Equipment Mounting

Install servers, switches, patch panels, and other devices according to weight distribution guidelines to avoid stress on the cabinet. Use proper mounting hardware and ensure the cabinet is level ( ). For in-wall cabinets, ensure the enclosure fits securely and allows adequate airflow ( ).

Cooling and Airflow

Maintain adequate airflow within the cabinet by positioning fans or cooling units strategically. Organized cabling improves airflow efficiency, reducing cooling costs by up to 20–30% ( ). Monitor temperature and humidity levels to prevent equipment failure ( ).

Scalability and Future-ProofingPlan for 20–30% extra capacity to accommodate future devices and network growth ( ). Leave space for additional cabling and easy access to connection points to simplify upgrades and maintenance ( ).

Summary

Successful network cabinet installation requires careful planning, proper cabinet selection, organized cabling, effective power and cooling management, and adherence to safety standards. Following these best practices ensures a reliable, scalable, and efficient network infrastructure that supports both current and future technological needs ( ).
