Cable tray for laying fiber optic cables

Fiber optic cables can be safely and efficiently installed in cable trays using proper routing, support, and securing methods while adhering to NEC standards.

Cable Tray Selection and Compliance

Cable trays are open or partially open raceway systems designed to support and route fiber optic cables, multi-fiber assemblies, and patch cords in industrial and commercial environments. According to the 2023 National Electric Code (NEC), any listed optical fiber cable is acceptable for tray applications, provided it meets tray-rating standards that ensure mechanical durability and jacket integrity. Common tray types include ladders, troughs, channels, and solid-bottom trays, each offering varying levels of support and airflow.

Installation Guidelines

Planning and Layout: Determine the full cable path, including horizontal and vertical runs, bends, and expansion allowances. Ensure the tray system is adequately supported and straight along its length. Cable Placement: Fiber optic cables should be laid loosely in the tray to avoid excessive bending or tension.

Use clockwise or consistent directional placement when feeding cables through input holes or tray sections to prevent twisting. Securing Cables: Use cable ties, straps, or fixture holes provided in the tray base to secure cables without compressing them. Avoid over-tightening, which can damage the fiber jacket.

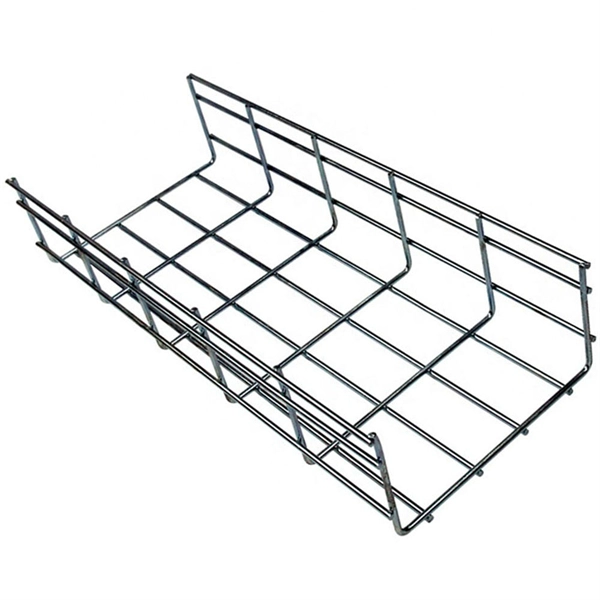

Transitions and Fittings: When connecting tray components, ensure couplers and end caps are flush and fastened properly. Maintain smooth transitions at bends and vertical drops to prevent sharp bends or kinks. Protection and Accessibility: Wire mesh trays or fiber routing channels provide both protection and easy access for maintenance.

Suspended trays allow direct routing from one end of a data center or facility to another, facilitating cable addition or replacement.

Best Practices

Maintain minimum bend radius as specified by the cable manufacturer to prevent signal loss or fiber breakage. Avoid using cable trays as walkways to prevent personal injury and cable damage. Plan for future expansion by leaving extra space in trays and using modular components.

Ensure all fasteners are tight and the tray is level to prevent sagging or uneven support.

Summary

Proper fiber optic cable installation in cable trays involves selecting the right tray type, planning the layout, securing cables without stress, and following NEC-compliant practices. Using wire mesh or ladder trays enhances protection, organization, and maintenance efficiency, ensuring long-term performance and safety of the fiber network.
