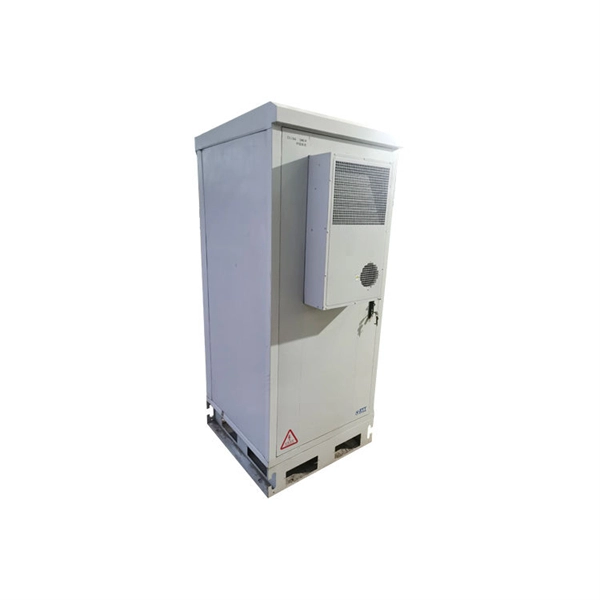

Details of Waterproof Distribution Box

Waterproof distribution boxes use IP-rated seals, gaskets, and precision cable entry ports to protect internal electrical components from water, dust, and environmental exposure.

Key Features of Waterproof Interfaces

Ingress Protection (IP Ratings): Modern waterproof distribution boxes are designed to meet IP65 to IP68 standards, ensuring protection against dust and water jets or immersion. Higher ratings like IP69K provide resistance to high-pressure, high-temperature water cleaning, making them suitable for harsh outdoor or industrial environments. Sealing Mechanisms: The primary waterproof interface is achieved through compression gaskets or "pour-in-place" foam gaskets that create a continuous barrier around the lid.

These gaskets maintain a constant compression force, typically around 20%, to prevent water ingress even after repeated openings. Latching systems, such as AssureLatch™, ensure the cover remains tightly secured, maintaining the integrity of the seal. Materials: Enclosures are commonly made from UV-stabilized ABS or polycarbonate plastics or high-impact polycarbonate and stainless steel for corrosion resistance.

These materials provide durability against mechanical impact, UV exposure, and temperature fluctuations ranging from −25°C to +85°C or even −40°C to +80°C in extreme designs. Cable Entry and Terminal Protection: Waterproof boxes feature precision-drilled cable entry ports compatible with IP68-rated nylon glands, allowing secure wire connections without compromising the seal. Internal terminals often include terminal position assurance (TPA) locks and cavity plugs to prevent water or dust from reaching critical connections.

DI

N Rail and Modular Configurations: Many waterproof distribution boxes support DIN rail mounting, enabling organized placement of breakers, relays, and fuses while maintaining waterproof integrity. Compact and larger models, such as AT and HT series, offer flexibility for different wiring layouts and terminal requirements. Additional Considerations: For outdoor installations, UV-stabilized housings prevent yellowing and cracking.

Thermal management and wall thickness are designed to resist internal heat buildup during peak electrical loads. Reinforced frames prevent warping under temperature fluctuations, ensuring long-term reliability. In summary, the waterproof interface of a distribution box relies on IP-rated gaskets, secure latching, durable materials, and precise cable entry solutions to maintain a dry, dust-free environment for electrical components, ensuring safety and reliability in demanding conditions.
