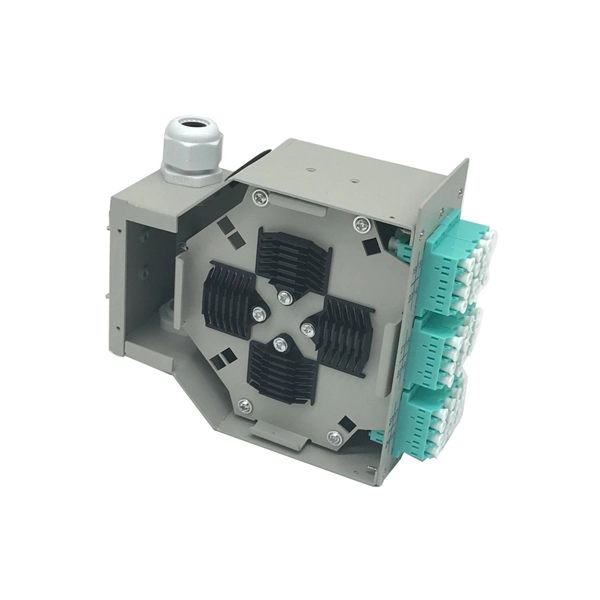

Fiber Optic Cable Junction Box Technical Specifications

The GB/T 16529. 1-2025 standard provides the general specifications for fiber optic cable junction boxes, covering design, materials, performance, testing, and installation requirements.

Overview of Fiber Optic Junction Boxes

A fiber optic junction box (also called a distribution or termination box) is a protective enclosure that organizes, houses, and protects optical fibers, connectors, splices, and passive devices such as optical splitters. These boxes are used in telecommunication networks, data centers, residential FTTH installations, and industrial environments to ensure reliable connectivity and protection against environmental factors.

Key Standards and Specifications

The GB/T 16529. 1-2025 standard, implemented in April 2026, provides a comprehensive framework for optical cable junction boxes in China. Key aspects include: Classification: Boxes are classified based on their application, such as indoor, outdoor, wall-mounted, or rack-mounted, and may include hybrid or compression connector types.

Design Requirements: Structural integrity, compatibility with subunits, and proper fiber management are emphasized. The design must maintain fiber bend radius and allow for easy splicing and distribution. Materials: Boxes must use durable, corrosion-resistant materials suitable for environmental conditions, including UV exposure, moisture, and temperature variations.

Performance Requirements: Standards cover mechanical strength, sealing, water immersion, electrical insulation, and environmental performance to ensure long-term reliability. Testing Methods: Visual inspection, additional optical loss measurement, sealing performance, mechanical and environmental tests, and electrical performance verification are required. Identification and Marking: Boxes must be clearly labeled with specification codes, device markings, packaging information, and storage conditions.

Safety: Compliance with safety regulations is mandatory to prevent hazards during installation and operation.

Installation and Application Considerations

Placement: Junction boxes should be installed close to the work area to minimize unnecessary cable lengths. Environmental Control: Consider temperature, lighting, and protection from moisture or mechanical damage during installation. Cable Management: Proper routing, splicing, and storage of fibers inside trays or cassettes are essential to maintain signal integrity.

Types: Common types include wall-mounted, rack-mounted, and pole-mounted boxes, with capacities ranging from a few fibers to over 96 fibers, depending on network requirements.

International and Industry References

While GB/T 16529. 1-2025 is specific to China, similar international standards include ISO/IEC 11801 and DIN EN 50173-1, which define requirements for structured cabling and fiber optic distribution systems. Compliance with these standards ensures interoperability, safety, and performance consistency across different network deployments.

In summary, fiber optic junction boxes must meet standardized requirements for design, materials, performance, and testing to ensure reliable fiber management and protection. GB/T 16529. 1-2025 serves as the authoritative guideline in China, providing a framework for manufacturers, installers, and network operators.
