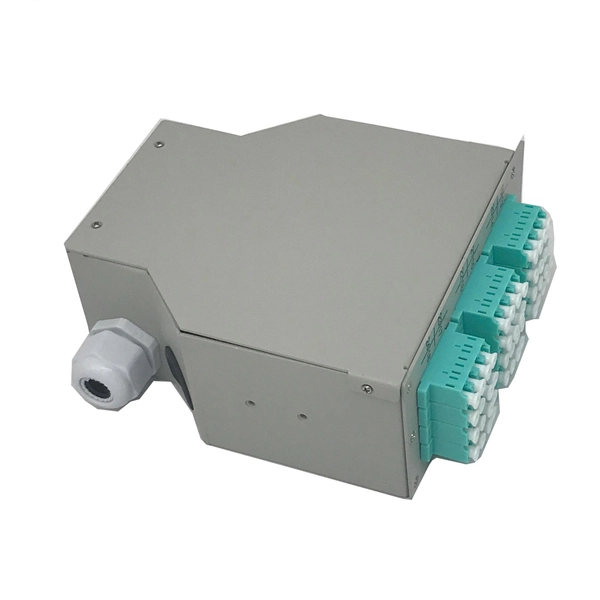

Bottom-entry T-junction cable tray

A bottom-entry T-junction cable tray allows a branch tray to connect from below the main tray, requiring careful alignment, support, and cable management to ensure safety and compliance.

Planning and Preparation

Before installation, plan the route of both the main and branch trays, considering clearance, load capacity, and cable separation requirements. Mark the exact location of the T-junction and ensure that the branch tray aligns properly with the main tray to avoid stress on cables and connectors. Select the appropriate tray type—solid-bottom trays are recommended for sensitive instrumentation cables to protect against dust, moisture, and electromagnetic interference, while ladder trays are suitable for heavier power cables requiring airflow.

Mounting the T-JunctionSupport and Brackets: Use suitable brackets or hangers to support the branch tray from the ceiling, wall, or floor. Spacing between supports should typically be 1. 5 to 3 meters, depending on tray type and load.

Alignment: Ensure the branch tray is level and aligned with the main tray. Use connectors and fittings designed for T-junctions to secure the trays together without gaps or misalignment. Minimum Bend Radius: Maintain the minimum bend radius for cables as they enter or exit the bottom-entry junction to prevent damage and signal degradation.

Cable Laying and Management

Separation: Keep instrumentation, control, and power cables in separate trays or compartments to prevent electromagnetic interference (EMI) and signal noise. Organization: Use cable ties or straps to neatly organize cables, leaving enough slack for thermal expansion, movement, or future modifications. Rung Spacing: For ladder-type trays, maintain a rung spacing of 150–230 mm (6–9 inches) to support cables adequately and prevent sagging.

Grounding and Bonding

Metal trays must be properly grounded and bonded to prevent electrical hazards. Ensure all T-junction fittings and connectors maintain electrical continuity with the main tray system.

Environmental Considerations

Material Selection: Choose tray materials based on the environment. Stainless steel or aluminum is preferred in corrosive or humid areas, while solid-bottom trays protect sensitive cables from dust and moisture. Ventilation: Ensure adequate airflow for heat dissipation if power cables are involved, especially in long runs or high-current applications.

Final Checks

Verify that all trays are securely fastened and level. Confirm that cables are properly supported, separated, and protected. Ensure compliance with local electrical codes and manufacturer guidelines for cable tray systems.

By following these steps, a bottom-entry T-junction cable tray can be installed safely, maintaining cable integrity, minimizing EMI, and allowing for future expansion or maintenance.
