Building Fiber Optic Cable Laying Plan

A successful fiber optic cable installation requires meticulous planning, surveying, permitting, material preparation, precise installation, and thorough testing to ensure long-term reliability and scalability. 1.

Project Planning and Design

Begin by defining the purpose and scope of the fiber network, including expected bandwidth, number of endpoints, and future scalability. Gather architectural drawings, telecom blueprints, and site surveys to understand existing infrastructure and potential obstacles.

Use GIS and CA

D tools to create detailed network maps, analyze terrain, and plan routes that minimize disruption and cost. Prepare a Bill of Materials (BoM) and Bill of Quantities (BoQ) to account for all cables, connectors, splice closures, and other components. 2.

Permitting and Approvals

Obtain all necessary permits and approvals from local authorities, utility companies, and environmental agencies. This ensures compliance with municipal, state, and federal regulations. Document all approvals and coordinate with stakeholders to avoid delays.

3.

Material Procurement and Staging

Order custom fiber optic cables based on type, fiber count, and color coding, allowing extra fibers for potential damage. Stock standard items like connectors, patch panels, and splice closures. Plan delivery to a staging area or job site to ensure all materials are available before installation begins.

Train technicians on any new tools or components to prevent installation errors. 4.

Site Survey and Make-

Ready Work

Conduct a detailed field survey using GNSS with RTK, LIDAR, and mapping cameras to document pole locations, mid-span coordinates, pole height, lean, guy wires, and existing equipment. For aerial installations, perform make-ready work to ensure poles and conduits are prepared for fiber deployment. 5.

Fiber Installation Methods

Choose the installation method based on terrain and urban density: Underground: Open trenching, microtrenching, directional drilling (HDD), or plowing for rural areas. Aerial: Stringing fiber along utility poles, requiring precise make-ready documentation. Blown or jetted fiber: Use compressed air to install fiber through conduits, minimizing stress and installation time.

Ensure proper handling to avoid bending or tension that could damage fibers. 6.

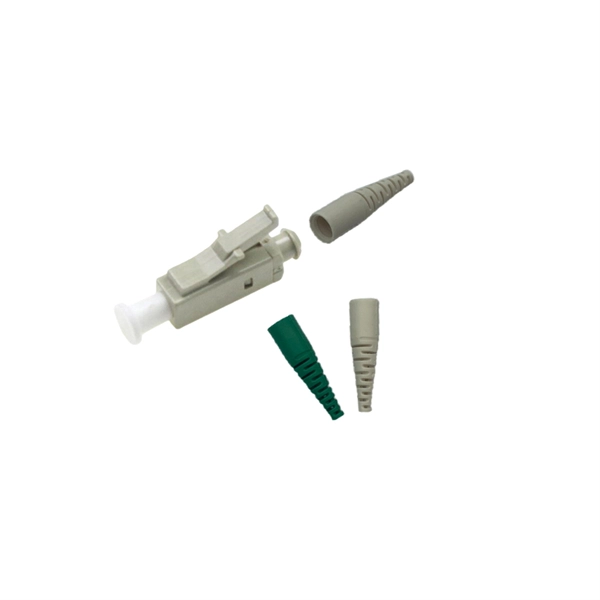

Splicing and Termination

Perform fusion splicing or mechanical splicing at designated points. Install connectors and patch panels according to the network design. Maintain consistent labeling and documentation for all fibers to facilitate future maintenance.

7.

Testing and Quality Assurance

Use Optical Time Domain Reflectometers (OTDRs) and other testing tools to check for light loss, continuity, and connection quality. Verify that the network meets performance specifications before activation. Document all test results for compliance and troubleshooting.

8.

Network Activation and Documentation

Install Optical Network Terminals (ONTs) at subscriber locations for Fiber to the Home (FTTH) or business connections. Maintain detailed records of cable routes, splices, terminations, and test results. Standardize components and procedures across the project to ensure consistency and ease of future upgrades.

9. Maintenance and Future-ProofingPlan for scalability and minimal maintenance by leaving spare fibers, using durable components, and maintaining accurate documentation. Regular inspections and testing help ensure long-term network reliability.

By following these steps, a fiber optic construction project can achieve efficient deployment, high performance, and long-term reliability, whether for urban, suburban, or rural networks.
